Skin Temperature Screening Solution

FLIR EST™ Kiosk

Se rendre sur la page Support

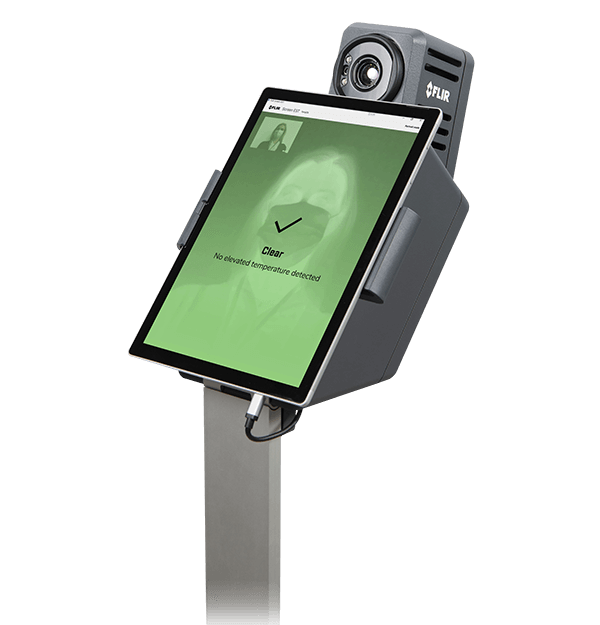

product image

Quickly screen passengers, customers, or employees for signs of elevated skin temperature with this turnkey solution. The FLIR EST Kiosk combines the temperature measurement capabilities of a thermal imaging camera plus FLIR Screen-EST™ software with the convenience of a tablet display and floor stand. This kiosk sets up in minutes, offering fully automated, self-service screening that targets the inner canthus (corner of the eye) for accurate skin temperature measurement.

Contacter le service commercial

Faster, Easier Skin Temperature Screening

  • Easy Setup and Operation

    Ready to use right out of the box with pre-installed FLIR Screen-EST software, customizable instructions, and alert displays.

  • Efficient, Consistent Results

    Automatically targets the inner canthus for fast, accurate screening.

  • Accurate Temperature Screening

    Advanced factory calibration combined with relative measurement methodology ensures screening accuracy and avoids false-positives.

Contacter le service commercial

Vous voulez plus d'informations sur ce produit ?

Appelez le +33 1 60 37 01 00 pour parler à un expert.

Spécifications
Aperçu
Codage
Video stream – H.264, MPEG4, or MJPEG; Radiometric stream – Compressed JPEG-LS, FLIR radiometric
Dimensions [L x P x H]
360 × 270 × 1300 mm (14 × 11 × 51.2 in)
Garantie
http://www.flir.com/warranty/
Interface Web
Yes
Poids
8.3 kg (18 lb.)
Informations générales
Contenu de l’emballage
Camera, Surface® Pro7 tablet, tablet stand, cables (Europe, UK, US), screening position floor sticker (T131181), FLIR Screen-EST™ license card, printed documentation
Alimentation
Alimentation externe
24/48 V DC 8 W max
Consommation électrique
7.5 W at 24 V DC typical; 7.8 W at 48 V DC typical; 8.1 W at 48 V PoE typical
External Voltage
Allowed range 18–56 V DC
Raccordement électrique
Camera: M12 12-pin A-coded, Male (shared with Digital I/O)
Connexions et communication
Communication Ethernet
TCP/IP socket-based FLIR proprietary
Ethernet
Control, result, image, and power
Interface Ethernet
Wired, Wi-Fi
Norme Ethernet
IEEE 802.3
Objet de la sortie numérique
As function of alarm, output to external device, for example when the screening alarm is triggered
Sorties numériques
3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C); Solid state opto relay; 1x dedicated as Fault output (NC)
Tension d'isolation des E/S numériques
500 VRMS
Type de connecteur des E/S numériques
M12 12-pin A-coded, Male (shared with external power)
Type de connecteur Ethernet
M12 8-pin X-coded, Female; RP-SMA, Female
Type de connexion Ethernet
1000 Mbps
Wifi
(optional) RP-SMA, Female; Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi); Peer to peer (ad hoc)‎ or infrastructure (network)‎
Données image et optiques
Amélioration du contraste
FSX® / Histogram equalization (IR only)
Champ de vision (CdV)
24° × 18°
Distance focale
17 mm (0.67 in)
Distance minimale de mise au point
0.15 m (0.49 ft)
Fonction MSX d'amélioration des images
Yes (video streaming source 0)
Fréquence d'image
30 Hz
Gamme spectrale
7.5–14 µm
Identification de l'objectif
Automatic
Matrice à plan focal (FPA)
Uncooled microbolometer
Mise au point
One-shot contrast, motorized, manual
Ouverture f
1.3
Pas du détecteur
17 µm
Résolution du flux vidéo
Video stream 0 – 640 × 480 pixels; Video stream 1 – 1280 × 960 pixels; Radiometric stream – 464 × 348 pixels
Résolution IR
464 × 348
Résolution spatiale (CdV instantané)
0.90 mrad/pixel
Sensibilité thermique/NETD
<40 mK at 30°C (86°F)
Superposition
Video stream 0 – With/Without; Video stream 1 – No
Vidéo Flux
Bit rate set through camera web
Mesure et analyse
Plage de températures de l’objet
15°C to 45°C (59°F to 113°F)
Précision
±0.3°C (±0.5°F) when used with FLIR Screen-EST™ software
Other
Pixel Format
Video stream – YUV411; Radiometric stream – MONO 16
Radiométrie
Image Source
Video stream 0 – visual / IR / MSX®; Video stream 1 – visual; Radiometric video stream – IR
